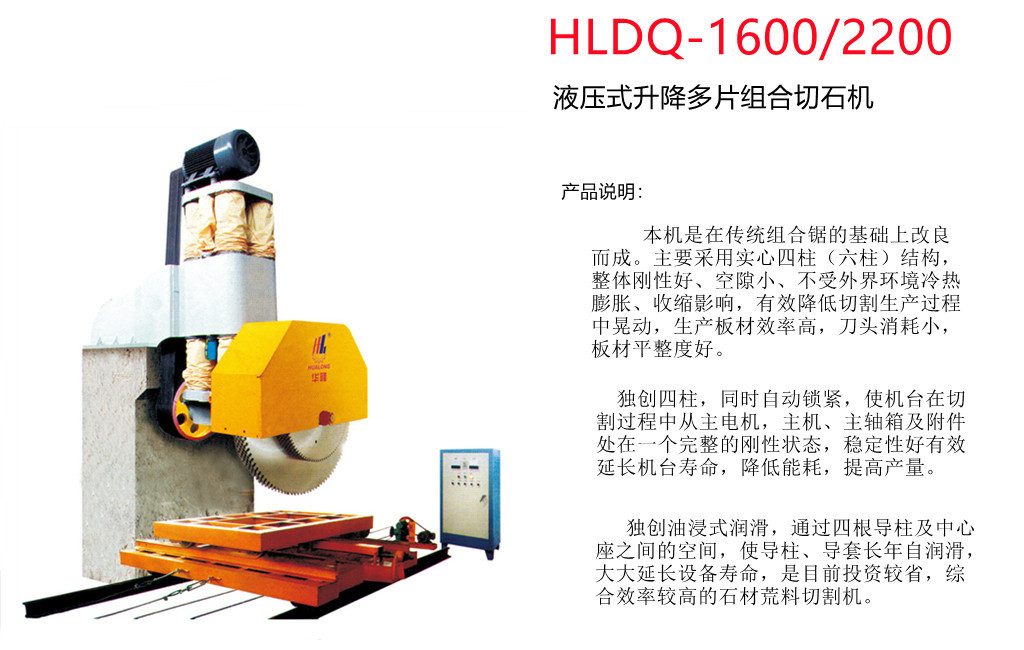

液壓式單臂多片鋸 HLDQ-1600 適用於切割石塊,如花崗岩、大理石等。
主要特點
(1)采用全密封的四缸導向軌進行升降操作,這使得整個結構更加穩固,減少了磨損,並能長時間保持機器處於最佳工作狀態。
(2) 電動自動切片分離技術提高了產品的精度,降低了勞動強度,並提高了生產效率。

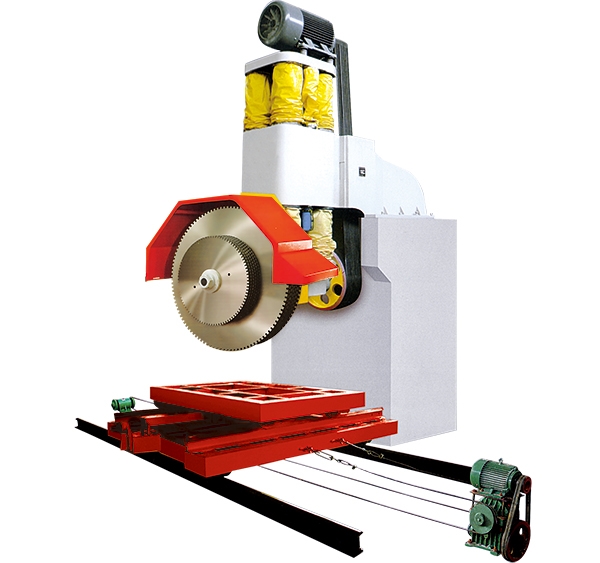

Hydraulic Lift Mulit-blade Stone Cutting Machine HLDQ-1600 is suitable for cutting stone blocks, such as granite, marble.
Main Features
1) Full sealed four-cylinder guider rail is used for rising and falling which makes the whole structure more stable, reducing wear and keeping themachine in the best working status for long time.
2) Electric automatic slice separating improves the precision of the products, reduce labour intensity and improves the efficiency.
聯係我們,獲取完整方案!
Contact us to obtain the complete solution!
Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
欧美va在线機械,數控五軸橋切機,四軸橋切機,4+1橋切,5+1橋切,三軸橋切機,紅外線橋切機,石材切機,石材加工廠設備,石材拋光機,石材拋光設備,石材加工中心,台麵加工中心,水刀,水刀切割機,礦山開采設備,礦山圓盤鋸,圓盤雙刀鋸,礦山機,礦山鋸。
名稱 | Name | 單位/Unit | HLDQ-1600/6 |
HLDQ-1600/10 |
HLDQ-1600/16 |
HLDQ-1600/12 |
鋸片直徑 |
Btade diameter |
mm |
Φ1600,Φ940 |
Φ1600,Φ940 |
Φ1600,Φ940 |
Φ1200 |
鋸片數量 |
Number of blades |
pc |
6(3-Φ1600,3-Φ940) |
6(3-Φ1600,3-Φ940) |
6(3-Φ1600,3-Φ940) |
12(Φ1200) |
升降行程 |
Blade lifting stroke |
mm |
1000 | 1000 |
1000 |
1000 |
最大切割尺寸 | Max.cutting size |
mm |
3500x1300x950 | 3500x1300x960 | 3500x1300x950 | 3500x1300x950 |
行程電機功率 | Power of stroke motor |
kw |
2.2 | 2.2 | 2.2 | 2.2 |
升降電機功率 | Power of lifting motor |
kw |
22.2 | 2.2 | 2.2 | 2.2 |
主電機功率 |
Power of main motor |
kw |
37 | 45 | 55 | 55 |
耗水量 |
Water consumption | L/min | 37 | 42 | 42 | 42 |
總功率 |
Gross power | kw | 41.4 | 49.4 | 59.4 | 59.4 |
外形尺寸 |
Dimensions(L x W x H) | mm | 8500x4000x5500 | 8500x4000x5500 | 8500x4000x5500 | 8500x4000x5500 |
整機重量 | Gross weight | kg | 6000 | 7800 | 8500 | 8500 |
