HKNC-450J 5 Axis Stone CNC SawjetHKNC-450J 五軸數控水刀橋切一體切割機

領跑智能製造新“石”代

HKNC-450J 5 Axis Stone CNC SawjetHKNC-450J 五軸數控水刀橋切一體切割機

所屬品牌：欧美va在线

所屬類別：板材切割設備

想了解更多相關產品信息，請聯係我們！

0594-2197723
hualongmc@163.com
我要谘詢
  • 產品說明
  • 技術參數
采購可留言電話號碼，我們會與您聯係！ 點擊進入1688查看更多產品

Purchase please leave a message phones and email, we will contact you!

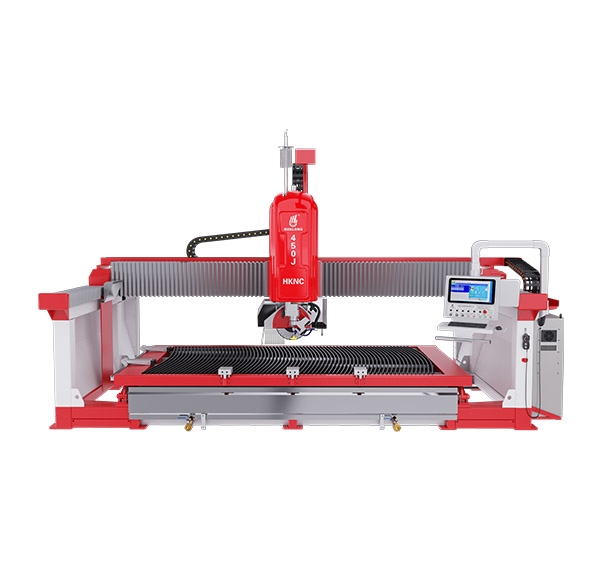

5 Axis Stone CNC Sawjet HKNC-450J

with top of the line Italian CNC control system ESA, is a fully automated dual-use machine, a combination of a 5-axis CNC saw and a 5-axis CNC waterjet, which is gone together constructing the revised concept system for cutting granite, marble, quarts, limestone and the rising new ceramic material.
CNC saw is used for cutting stone slabs, countertops and sinks, blade profiling, engraving and more.
The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.

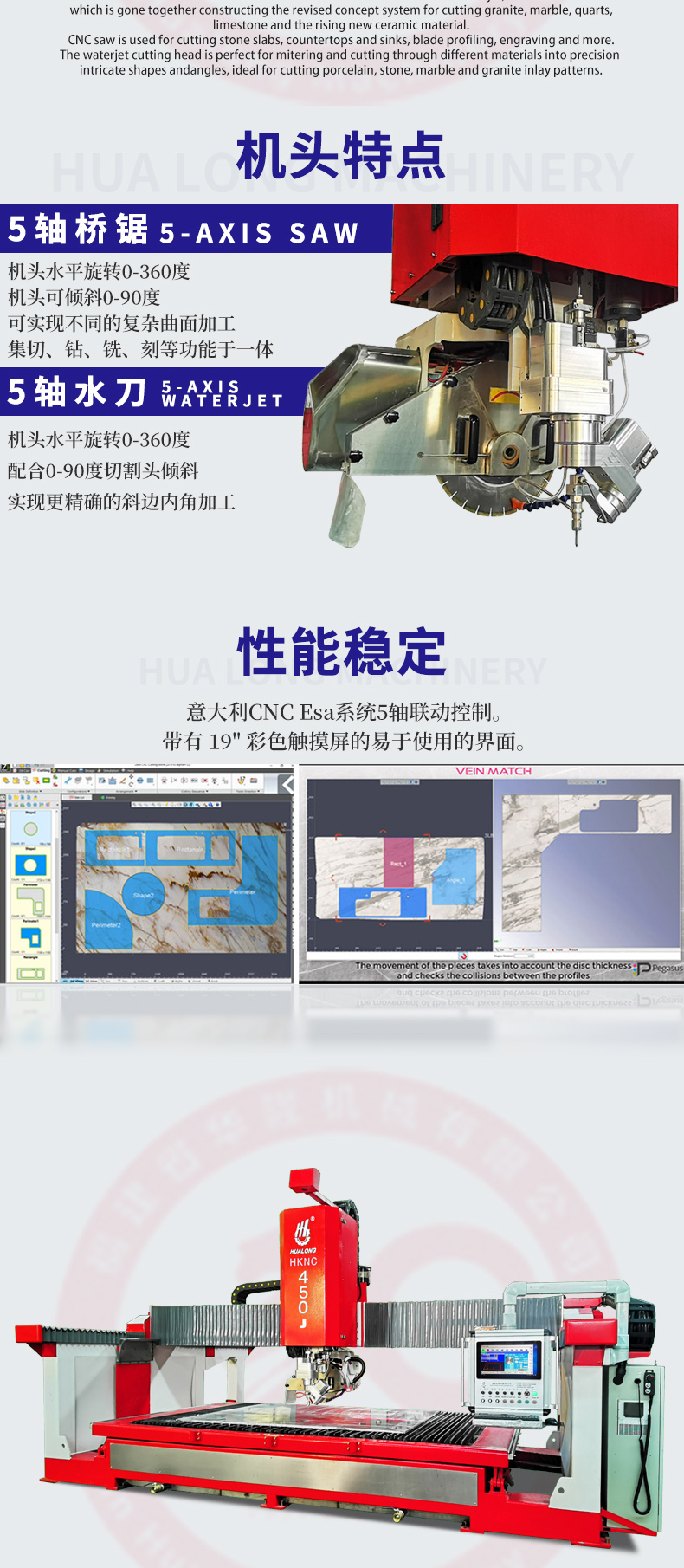

Main Features
5-axis Saw --- this machine is a fully interpolated 5 axis bridge saw

*Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs.
*It can implement different complex curved surface processing and combines the functions of cutting, drilling, milling, engraving
into an oganic whole.

5-axis Waterjet ---this machine is a fully interpolated 5 axis waterjet either
*Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise
inside-corner fabrication for mitered edge.

*KMT-H20 JET50 super-pressure pump equipped with Siemens PLC and motor.



1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.

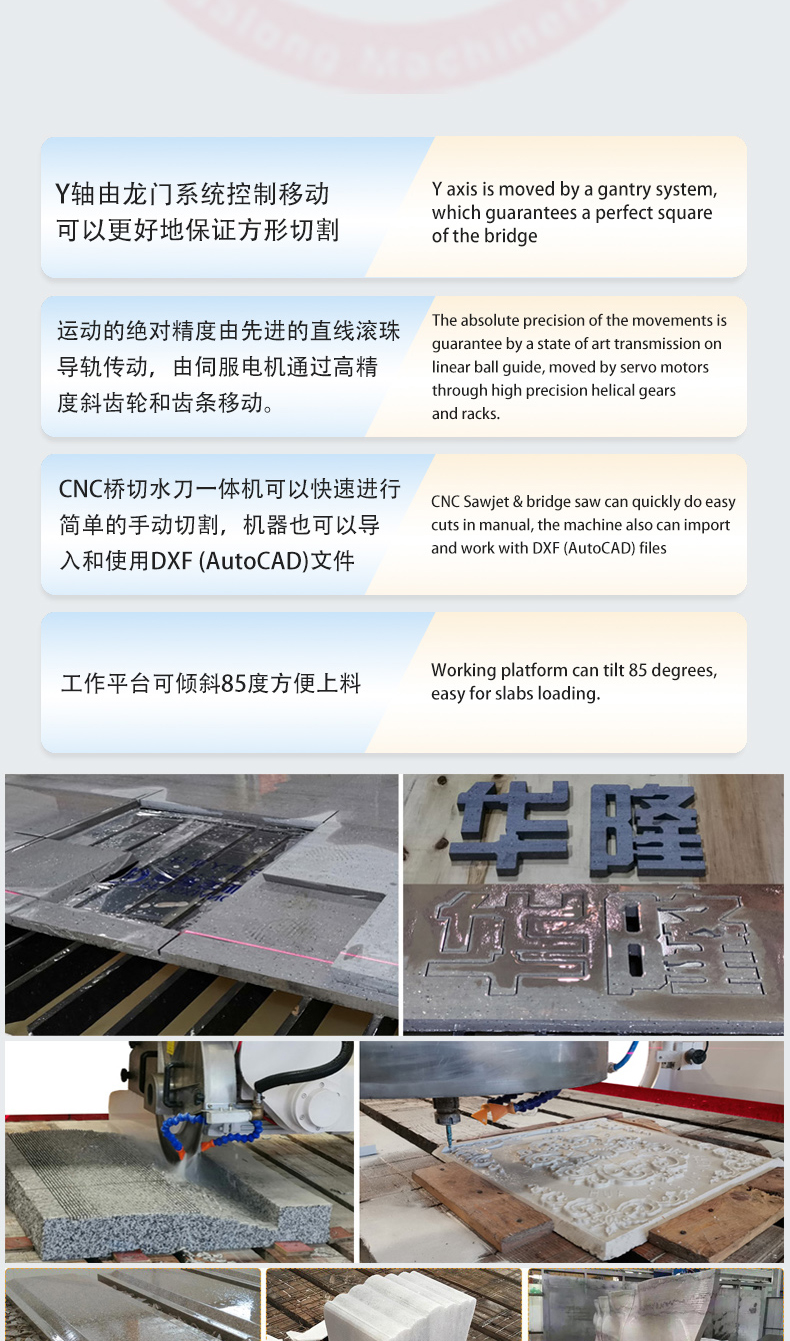

3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge
4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks.
5)CNC Sawjet & bridge saw can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files
6) Working platform can tilt 85 degrees, easy for slabs loading.
7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.



聯係我們，獲取完整方案!
Contact us to obtain the complete solution!




Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
欧美va在线機械，數控五軸橋切機，四軸橋切機，4+1橋切，5+1橋切，三軸橋切機，紅外線橋切機，石材切機，石材加工廠設備，石材拋光機，石材拋光設備，石材加工中心，台麵加工中心，水刀，水刀切割機，礦山開采設備，礦山圓盤鋸，圓盤雙刀鋸，礦山機，礦山鋸。

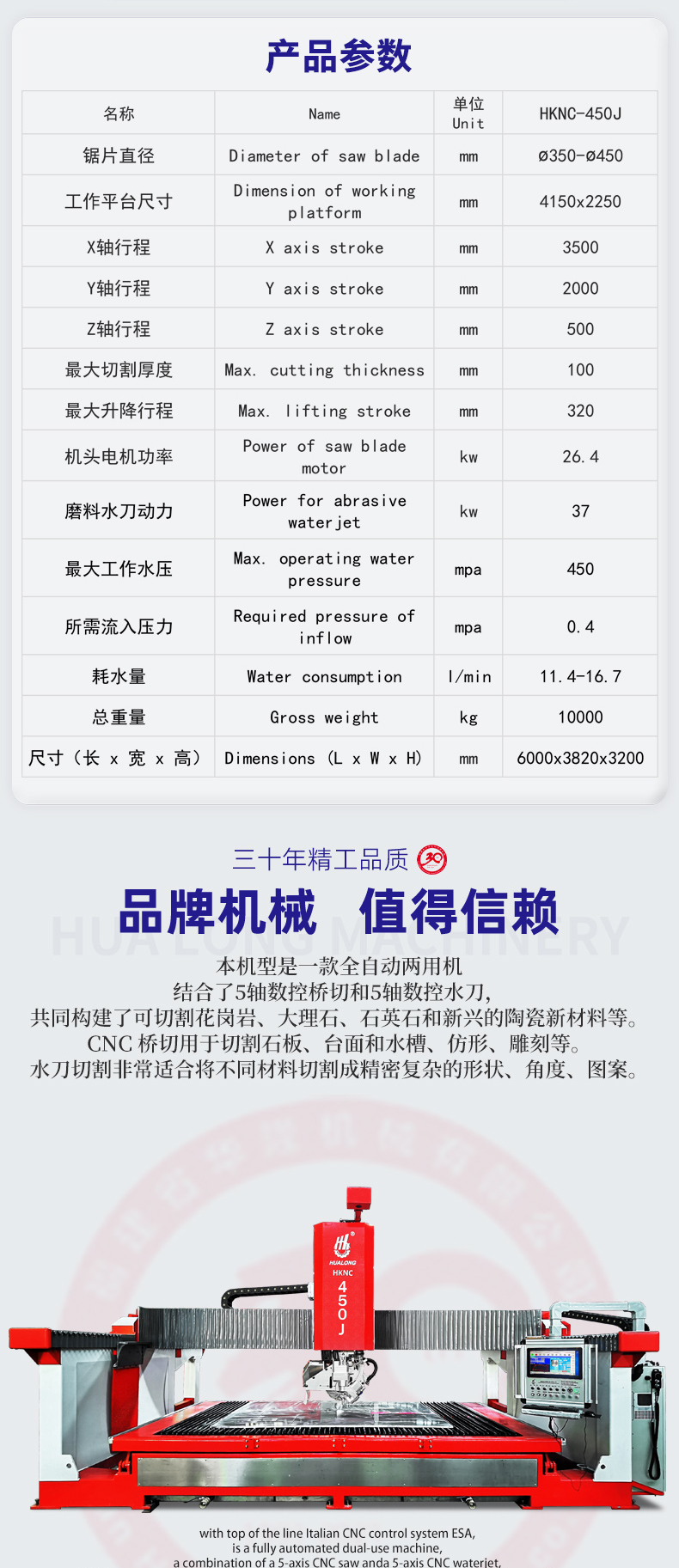

TECHNICAL  DATA FOR HKNC-450J
Diameter of saw blade
ø350-ø450
mm
Dimension of working platform
4150x2250
mm
X axis stroke
3500
mm
Y axis stroke
2000
mm
Z axis stroke
500
mm
Max. cutting thickness
100
mm
Max. lifting stroke
320
mm
Power of saw blade motor
26.4
kw
Power for abrasive waterjet
37
kw
Max. operating water pressure
450
mpa
Required pressure of inflow
0.4
mpa
Water consumption
11.4-16.7
l/min
Gross weight
10000
kg
Dimensions (L x W x H)
6000x3820x320
mm
